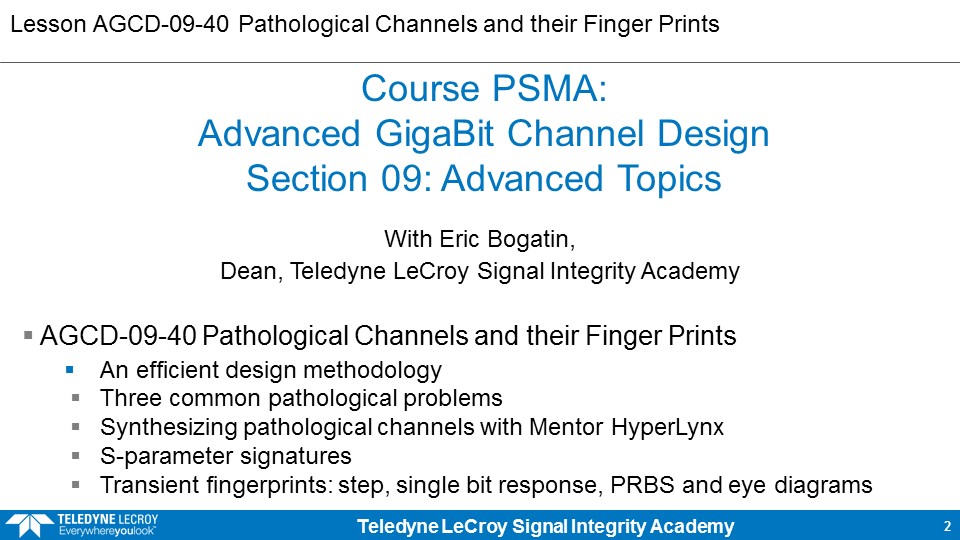

Lesson AGCD-09-40 Pathological Channels with Eric Bogatin,Signal Integrity EvengelistTeledyne LeCroy Front Range Signal Integrity Lab SUBSCRIPTION ONLY CONTENT AGCD-09-40 Pathological Channels and their Finger Prints
- An efficient design methodology
- Three common pathological problems
- Losses
- Via stubs
- Mode conversion
- Synthesizing pathological channels with Mentor HyperLynx
- S-parameter signatures
- Transient fingerprints: step, single bit response, PRBS and eye diagrams
|
