Lesson AGCD-12-20 Changing Scales and Zooming Traces in SI Studio
with Eric Bogatin,
Signal Integrity Evengelist
Teledyne LeCroy Front Range Signal Integrity Lab
SUBSCRIPTION ONLY CONTENT
Subscribers click here to log in.

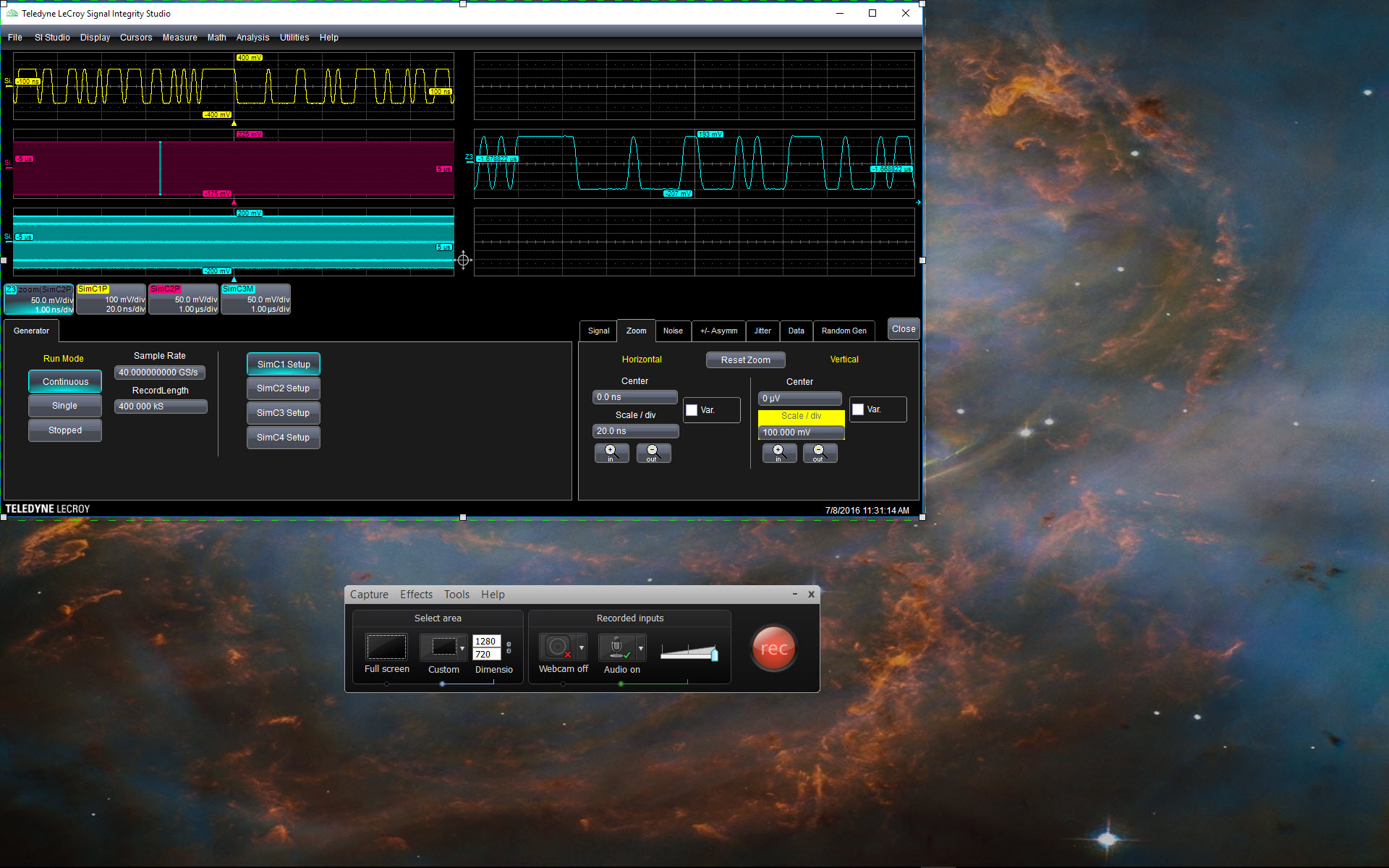

AGCD-12-20 Changing Scales and Zooming Traces in SI Studio

  • Recall the previous starting screen
  • Chanage the displayed grids
  • Move traces around
  • Left mouse click to open up set up option
  • Adjust the scales just like on a scope
  • Three ways of setting the scales
  • Reset zoom is like auto scale
  • Click and drag ove rwaveform to zoom locally
  • Double click on zoom unit box to bring up scale change tab
  • Now you try it
