HSDD-40-21 Ground Bounce part 2

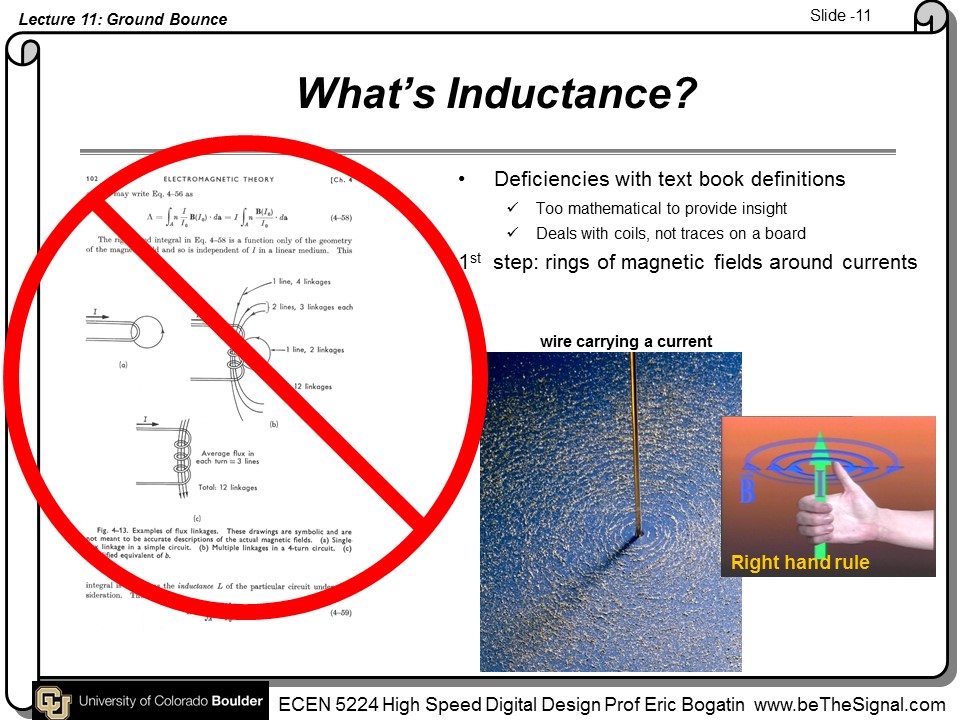

• What really is inductance
• Self and mutual, partial and loop
• Induced voltage and total inductance
• Ground bounce and total inductance of the return path
• Reducing ground bounce by design
• Simulating ground bounce in SPICE
• Ground bounce from gaps in the return path
• HyperLynx lab simulating gaps in return path
• Analyze the impact on ground bounce from number of traces crossing the gap, length of the gap, other features
