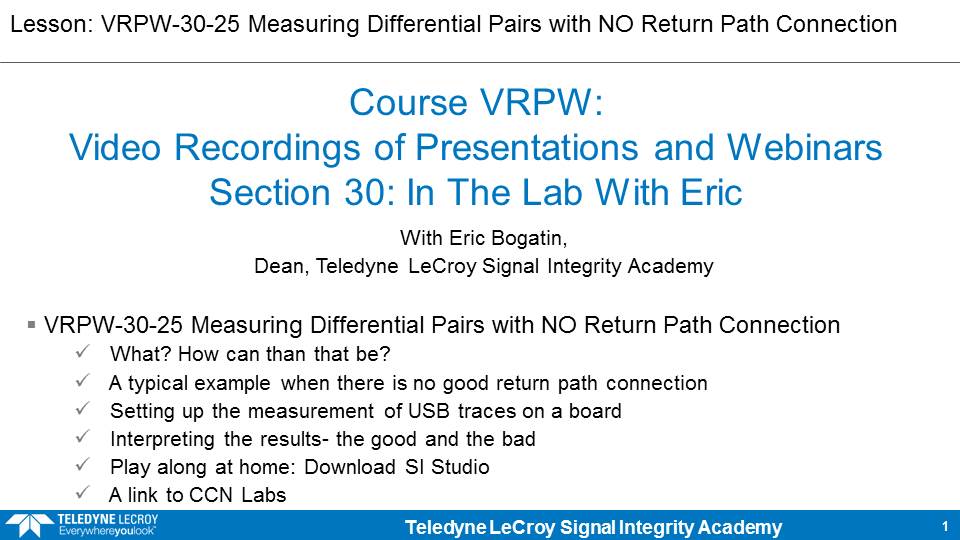

Lesson VRPW-30-25 Measuring Differential Pairs with NO Return Path Connection with Eric Bogatin,Signal Integrity EvengelistTeledyne LeCroy Front Range Signal Integrity Lab SUBSCRIPTION ONLY CONTENT VRPW-30-25 Measuring Differential Pairs with NO Return Path Connection
- What? How can than that be?
- A typical example when there is no good return path connection
- Setting up the measurement of USB traces on a board
- Interpreting the results- the good and the bad
- Play along at home: Download SI Studio and import the .s2p files in the zip folder on this page
- A link to CCN Labs and to Front Range Probe Stations
|
