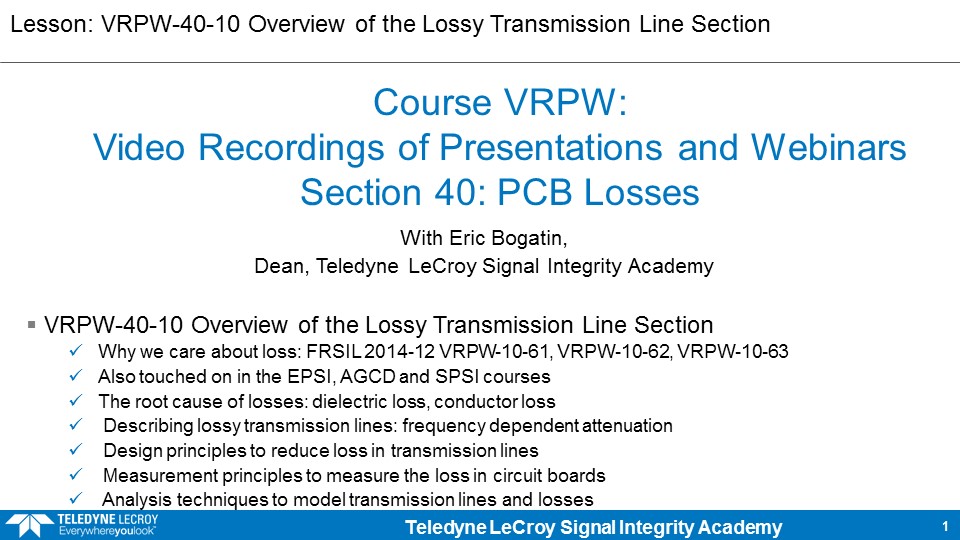

Lesson VRPW-40-10 Overview of the Lossy Transmission Line Section with Eric Bogatin,Signal Integrity EvengelistTeledyne LeCroy Front Range Signal Integrity Lab SUBSCRIPTION ONLY CONTENT VRPW-40-10 Overview of the Lossy Transmission Line Section
- Why we care about loss: FRSIL 2014-12 VRPW-10-61, VRPW-10-62, VRPW-10-63
- Also touched on in the EPSI, AGCD and SPSI courses
- The root cause of losses: dielectric loss, conductor loss
- Describing lossy transmission lines: frequency dependent attenuation
- Design principles to reduce loss in transmission lines
- Measurement principles to measure the loss in circuit boards
- Analysis techniques to model transmission lines and losses
|
